wind solar hybrid controller street light

wind solar hybrid controller street light

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Carton ,Pallet,Woden box
    Productivity: 10000
    Brand: BRSOLAR
    Transportation: Ocean,Land,Air
    Place of Origin: YANGZHOU
    Supply Ability: 10000 PER MONTH
    Certificate: ISO 9001:2000,CE & EN, RoHS, IEC, IES, IP67,FCC, TUV, SONCAP, PVOC & COC,SASO, CIQ, CCPIT,CCC,AAA
    HS Code: 9405409000
    Port: Shanghai,Shenzhen,Yangzhou

Product Description

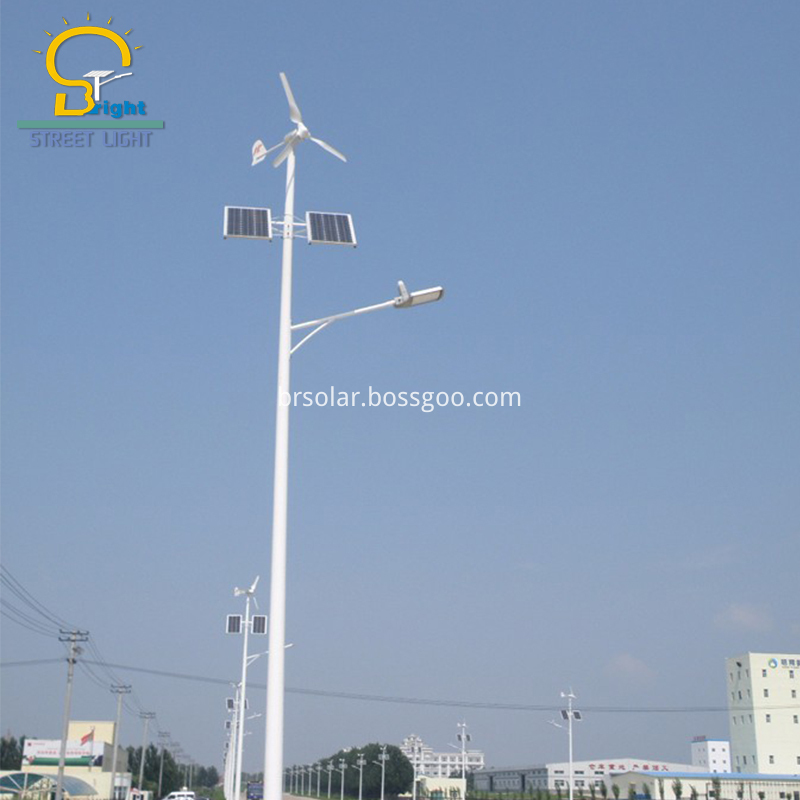

high efficient long life wind solar hybrid controller street light


Two charging mode solar street lights are designed into one combined system,if there is sunlight bu no wind energy,the solar panel can charges the battery,meanwhile,if there is wind energy but no sunlight ,the wind turbine can charge the battery.If both wind & solar energy is good enough ,both can charge the battery.


Major application if wind and solar street light: Highway ,Main road of city ,school campus road ,sidewalk,pathway,farm& ranches lighting,villa lighting ,landscape lighting -park,square etc.Especially used for those area with good wind energy.


1. Technical Data: 400W Wind Turbine Wind Solar Street Light Hybrid


LED light:24V60W, CREE LED,32P*3W,30LUX/8M,6500K
Solar panel:poly/monocrystalline,35V120W,17%Conversion efficiency
Battery: 12V100AH*2 deep recycles Gel battery
Wind turbine:24V400W
controller: Wind solar hybrid controller
Pole:8.5m high, steel, with galvanizing treatment
Working time:12hr/d, 6H full-energy mode +6H energy-saving mode,3 continued overcast & raining days.


2. Specification For Components:

1). LED Material Description:
1.) Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant

2.) Application with Polyester Substance in its Surface.
3.) Implement of Reflect: Made of High Purity Aluminum.

4.) Cover: High Strength and High Transparent Toughened Glass
5.) Fastener Bolt and Screws: Stainless Steel
6.) Arm Diameter: 48mm or 60mm

7.) IP67



2). Solar Panel Description:

1. We could ensure the conversion efficiency of solar panel with high efficiency polycrystalline Or Mono cells and Adding

Aluminum Frame, Tempered Glass.

2. 5 years’warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within

25 years.



3). Solar Gel Battery With >8Years Life Span:

Gel battery is able to bear overfull charge or overfull discharge, able to bear shaking,shock resistance, Long storage

life. no need add acid or water to maintenance it,No acid mist, Environmental Friendly.



4). Controller Description :

Top Battery Steel Box


5). Controller Description :

*protection grade: IP68, effective dust-proof and water-proof
*Type:PWM For good Sun Condition Area like Africa & MPPT wtih high efficiency for countries like Canada with bad sun

condition in winter.
*Single and double street light output control flexible
*Dimmable &Human Sensor are avaliable.

Solar LED Street Light Applications:

Street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock

lighting;sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.

1.Q:How many cycles full charge&discharge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times; in floating charging and discharging status, it can be

cycled for 5000~6000 times.

2.Q:How to Choose the System Voltage 12V or 24V or for normal street Light ?

A: We can design the System for 12v or 24v for solar street Light or 220-380V for normal street light .

3.Q:What’s the main difference between mono and polycrystalline solar panel?

A: production process and cost. Polysilicon technology is more mature since it is an early technology compared with

Monosilicon.

4.Q:The controller of your solar street light has dual time control function?

A: our solar charge controller is designed with dual time control function, you can set up the lighting time and divide it into

two parts, like 12 hours (6 hours full power lighting + 6 hours half power lighting)

...
