Steel constructions light-weight prefab steel structure prefabricated house 3 bedroom malaysia

Product Description

Popular Product

steel framing shed

Product Description

Easy To Installation 20ft 40ft Expandable Sandwich panel House Container Prefab Living Container House

Container modular house and prefabhouses that can be used as a granny flat, spare room, rental investment, first home, downsizing,deluxe mining camp accommodation, crib room, training room, office and accommodation for caravan & holiday parks, bed andbreakfasts and more!

20FT size expandable container house

1)Size:5850*2250*2530mm 5850*6360*2530mm
2)The color can be choose 3)the panel have EPS Sandwich Panel ,Rock Wool Sandwich Panel and PU Sandwich Panel
4)There is ultrahigh special size

Expandable container house with exterior decoration

1)There can be a roof 2)There can be a decking
4)There can be a stairs
5)The wall can be decorated by PVC plate or the metal sheet cladding

40Ft size expandable container house

1)Size:5850*2250*2530 5850*6360*2530
2)The color can be choose 3)the panel have eps sandwich panel ,rock wool sandwich panel and Pu sandwich panel
4)There is ultrahigh special size

Construction and Assembly:

On average, it takes our highly skilled and experienced team 3 days to construct on site. It is fully transportable and
relocatable and can be packed up within hours with very little fuss.
Transport or relocating:
They are transported on a tilt tray and placed onto 12 foundations.
All Cornices and Architraves.
Electrical: SAA approved 2.5mm cable to power points, 1.5mm cable to lights, light switches & fittings. Waterproofed external
plug.Plumbing and Sanitary wares.
Powder Board with Safety Switch.
Warranty and what it covers:
We have a 10-year structural warranty on galvanised steel framing.

Additional Information:

Electrical appliances not included.
Our plans can be modified and additions made to suit your individual requirements.
Our Expandable 37SQM and 58SQM home’s simply requires 12 – 16 foundations to sit on, leveled for stability.
On-site delivery can be arranged for an additional cost from your local port. They are transported on a tilt tray, a franna crane may be required for 1 hr to assist with placing the home on the foundations. Please ask for a quote.
Our homes are Cyclone rated for Region “C”.
All engineer plans are supplied with a form 15 for council.
Our temporary or permanent Pop Up Homes are perfect for use as granny flats, spare rooms, an investment, renovating, first home,downsizing, deluxe camp accommodation and much more.
Put one on a block you can’t build on, relocate it whenever you like, or live in it while building your dream home.
Detailed Images

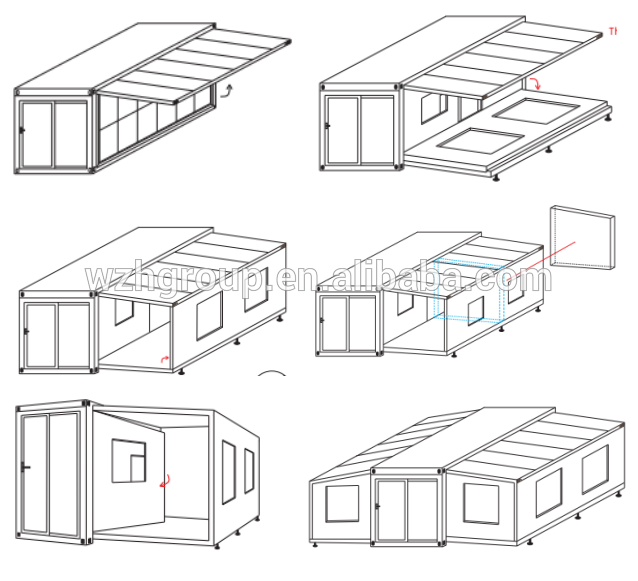

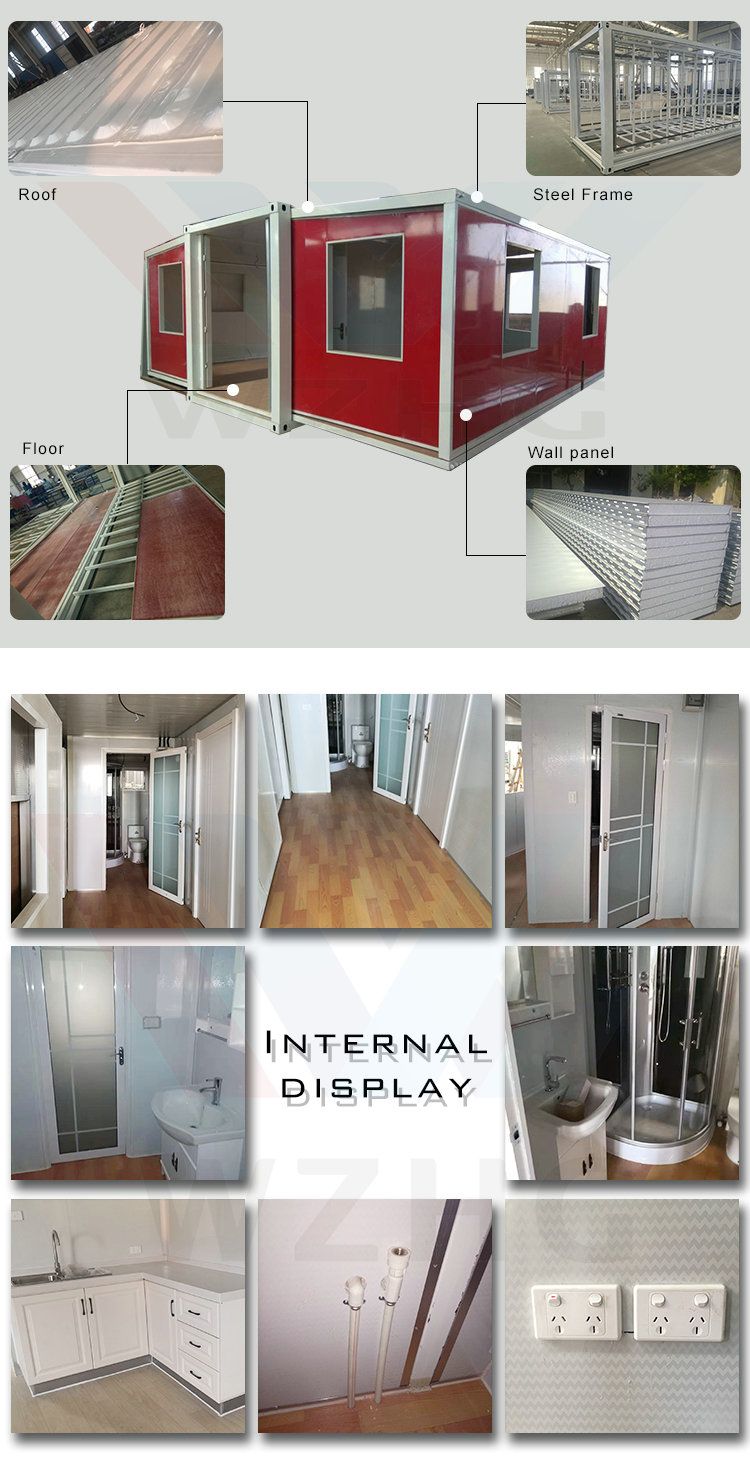

Detail information of the expandable container house

They look like a home, not a container, and they are strong and durable. Plug them into your mains or install solar with an
eco-septic system and go completely off grid. Taking them down is a reverse process of installing and they fold down to the size of a container Our plans can be modified and additions made to suit individual requirements. Move them with a tilt tray, they can be relocatable or permanent.
Option size
20ft,40ft,etc...
Main material
Galvanized steel structure with sandwich panel wall and doors,windows,etc.
Weight
around 3200kg - 6300kg
Service life
20 years
Color
White,blue,green,brown, or customized
Roof
3-4mm Hot galvanized steel structure with 4 corner casts and
(1)Galvanized steel roof covering;
(2)50mm -70mm eps sandwich panel or PU sandwich panel ;
(3)50mm -70mm eps sandwich panel or PU sandwich panel ;
Steel structure
3mm Hot galvanized steel structure with 4 corner casts and
(1)18mm fiber cement board;
(2)1.6mm PVC flooring;
(3)50mm rock woll ,eps or PU sandwich panel
(4)Galvanized steel base plate.
Columns
3mm Hot galvanized steel structure
Wall
50/75/100mm EPS/Rock woll/PU sandwich panel
Door
Made of steel/aluminum frame,dimension W870*H2040mm,furnish with a handle lock with 3 keys,or sliding glass door W1500*2000mm.
Window
Made of PVC/aluminum fame,dimension W800*H1100mm,glazed with double glass in a thickness of 5/8/5mm.
Connection kits
PVC Connection kits for ceiling,floor and walls.
Electricity
3C/CE/CL/SAA Standard,with distribution box,lights,switch,sockets,etc.
Optional accessories
Furniture,sabnitary,kitchen,A/C,electrical appliance for accomodation,office,dormitory,toliet,kitchen,bathroom,shower,steel roof,cadding panels,decorative material,etc
Advantage
(1)Fast installation:2 hours/set,save labor cost;
(2)Anti-rust:all material use hot glavanized steel;
(3)Waterproof:without wood ceiling,wall;
(4)Fireproof:Fire rating A grade
(5)Simple foundation:just need 12pcs concrete bolck foundation;
(6)wind-resistant(11 level) and anti-seismic(9 grade)

Detail Describe of the expandable container house

1) All steel fabric parts and the size of prefab house can be made according to clients' requirement.
2) The prefab house is low cost, durable structure, convenient relocation , and environment-protection,
3) The material of prefab house is light and easily to installation. one 50 square meter house five workers 1-3days finished
installation, save manpower and time.
4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region.
5) We used the high quality galvanized sheet and foam as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc
6) Support frame system of steel prefab house: Q235B China stander steel structural. Square tube, Channel steel, etc

Standard Inclusions:

Gloss 3.6m Kitchen with cupboards and draws, Cesar Stone bench tops. with double stainless-steel sink and flick Mixer.
Internal Partition Walls for the Bedrooms.
Base floor is 18mm marine plywood with Quality PVC floor coverings fitted.
Australian or US Standard water marked Toilet.
Bathroom Vanity and Sink.
Flick mixer, mirror shaving cabinet, towel rail, and all fittings.
900mm x 900mm Shower Cubical and Adjustable removable shower-head and mixer.

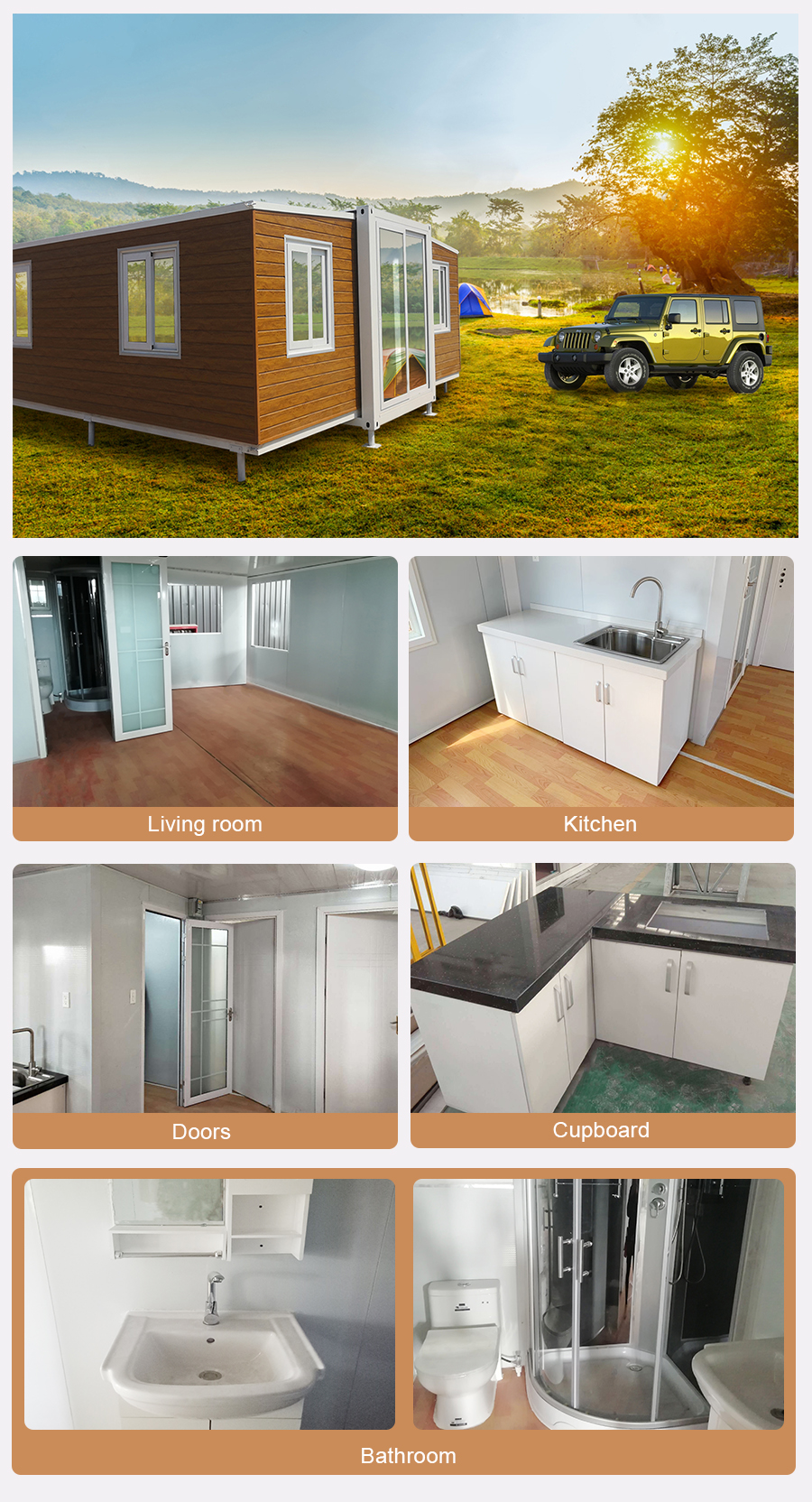

Inside of the expandable container house

The external flashing’s come in Ironstone, Cottage green or White.
Add a sliding door with fly screen to open out onto a veranda.
Extend the bathroom.
2 way bathroom.
Laundry/pantry cupboard.
Window and door blinds to suit available in black or white.
laundry room.

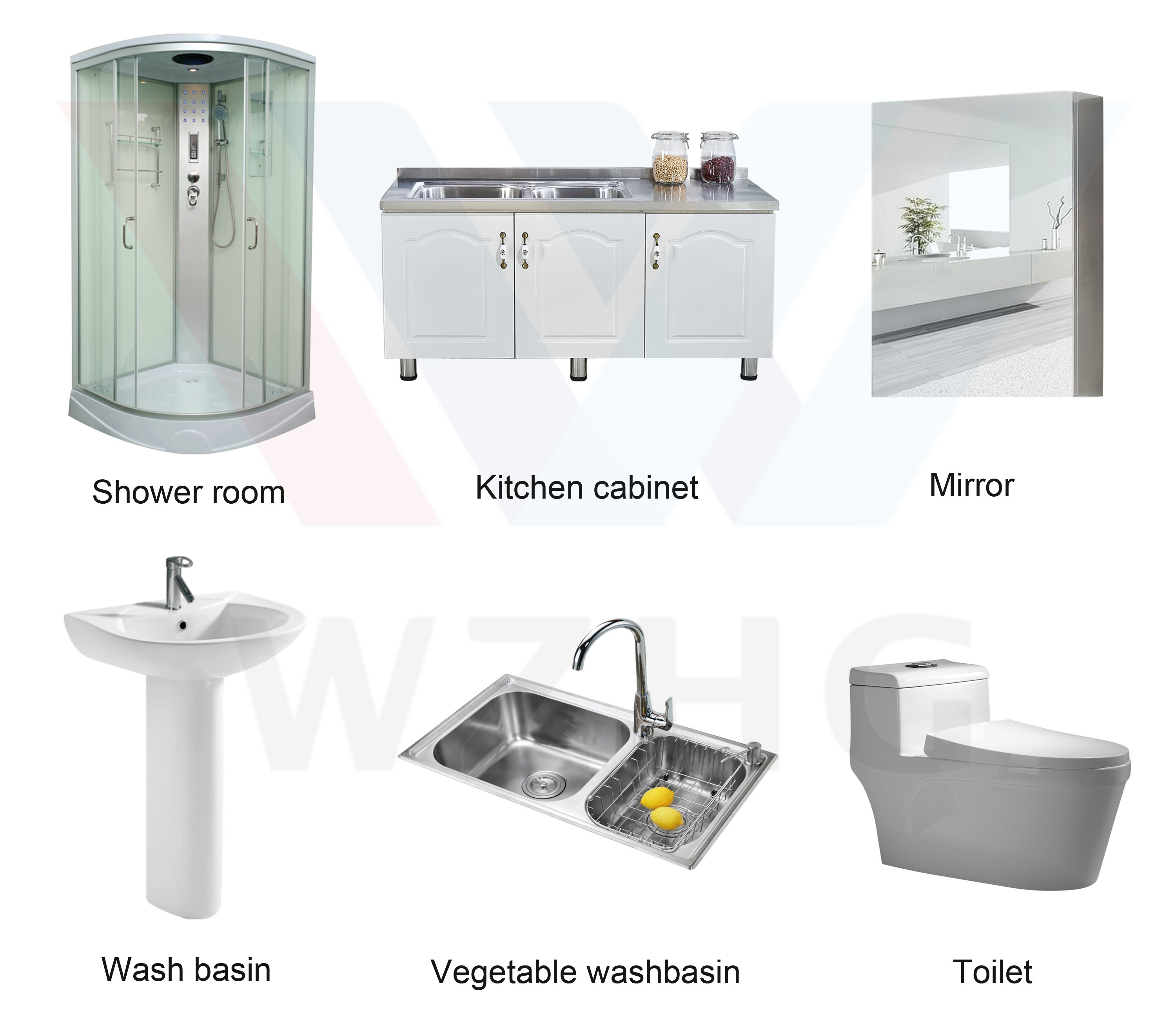

Accessories of the expandable container house

This kinds of expandable house always including the Cabinet ,sink ,toilet and shower
It is also can supply other accessories if you need

Decoration of the expandable container house
Always if you want the house much more beautiful,we also can supply the decoration material ,so your prefab living house can much
more comfortable

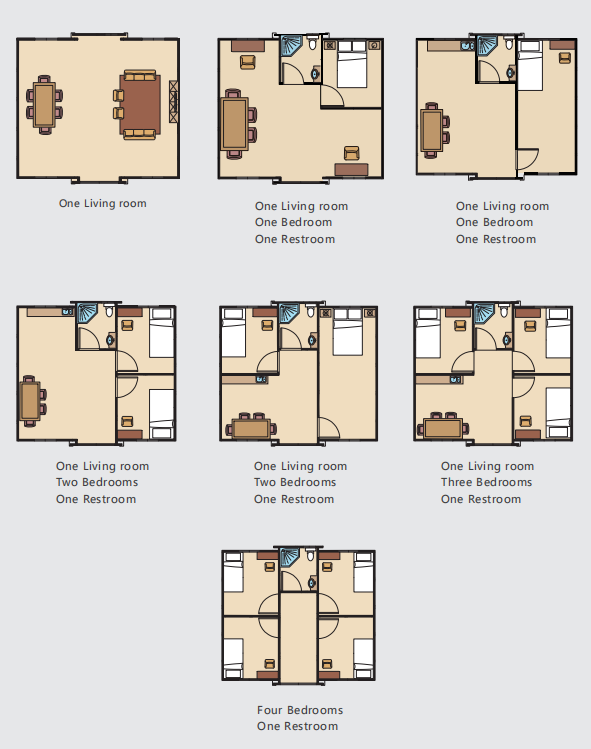

Layout plan

layout diagram of the expandable container house

layout diagram
1)one bedrooms +one toilet +open kitch and living room
2)two bedrooms+one toilet +open kitch and living room
3)two bedrooms+one toilet
4)four bedrooms +one toilet
5)four bedrooms
6) empety home
Installation
Application:
Construction site. Office Building.
Woker living house. School. Canteen. Recreation room.
Washing room,Laundry room,Chicken farm.warehouse.
Outdoor temporary Dormitory. Lobby. Office. Bathroom.

Installation/Loading Time:
Each worker can assemble 20-30 square meters every day.
4 worker can finish one set expandable  container house within one day
Loading: Two sets 20FT container house  can be loaded in one 40 HQ container
One 40 FT size house can be loaded in one 40 HQ container
Packing and Ship

One 40HQ can hold two sets 20ft expandable container house
One 40HQ can hold one set 40ft expandable container house
Higher house need the frame container hold

Cash show
FAQ

1. You are manufacture factory or trading company?

We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.
