Prefabricated Industrial Steel Structure Building as Workshop/Warehouse

Productivity:
15000sqm Per Month
Place of Origin:
Hangzhou Zhejiang, China (Mainland)
Supply Ability:
15000sqm Per Month
  • Mr. Catherine Zhou

Basic Info

Model No.:  Steel structure Building

Product Description

Model NO.: Steel Structure Building Standard: GB, ISO Forming: Hot-Rolled Steel Member: Steel Column Carbon Structural Steel: Q235 Application: Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor Downspout: PVC Pipes Wall Panel: Steel Sheet or Sandwich Panel Size: Designed as Per Customer′s Requirement Zinc Plating Quantity: 275G/M2 Customized or Not: Customized Specification: custom made HS Code: 9406000090 Type: H-Section Steel Trademark: Special Purpose Steel, PTH Connection Form: Bolt Connection Type of Steel For Building Structure: High-Strength Steel Residential Wall Structure: Wallboard Eaves Gutter: PVC Roof Insulation: Steel Sheet or Sandwich Panel Main Structure: Steel Structure Plus Light Steel Keel Painting: Zinc Rich Epoxy Primer Deliver Time: 45days Transport Package: Use Intergrated Steel Rack, Flat Packing Origin: Hangzhou Zhejiang, China (Mainland) Part 1:Company Profile

Prefabricated Industrial Steel Structure Building as Workshop/Warehouse

TAG:CE BV Approved Hot Sale Steel Structure for Workshop

Prefabricated Industrial Steel Structure Building as Workshop/Warehouse

Part 2:Product Description

1, Options
Application:
all kinds of steel buildings, metal buildings, modular house, Steel Frame for warehouse, workshop, garage,garden,shed etc, steel beams, other riveting and welding parts.
Building Type: Single slope, double slope, Single span, double-span, Multi-span,single floor, double floors!
Tailored to your needs:
We can also make and develop new parts according to customers' drawings and detailed dimensions.
Design Parameters:
size: width X length X eave height, roof slope.
Wind speed(KM/H), Snow load (KG/M2), Demands for doors and windows
Crane(if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!

2, Structural System
Base: Cement and steel foundation bolts
Column and beam:   Q345 or Q235 steel , all bolts connection! Straight cross-section or variable cross-section!
Bracing: X-type bracing made from angle, round pipe etc.
Type C or Z purlin: Size from C120~C250, Z180~Z250
Surface treatment: Two layers of Anti-rust Painting!

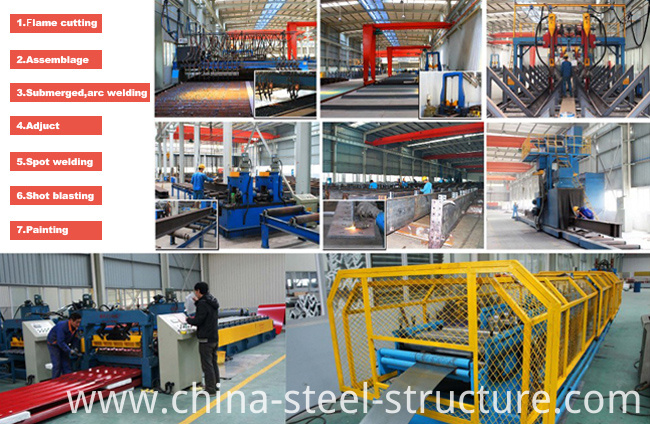

Material Q345 or Q235 Steel Production Process
Prefabricated Industrial Steel Structure Building as Workshop/Warehouse

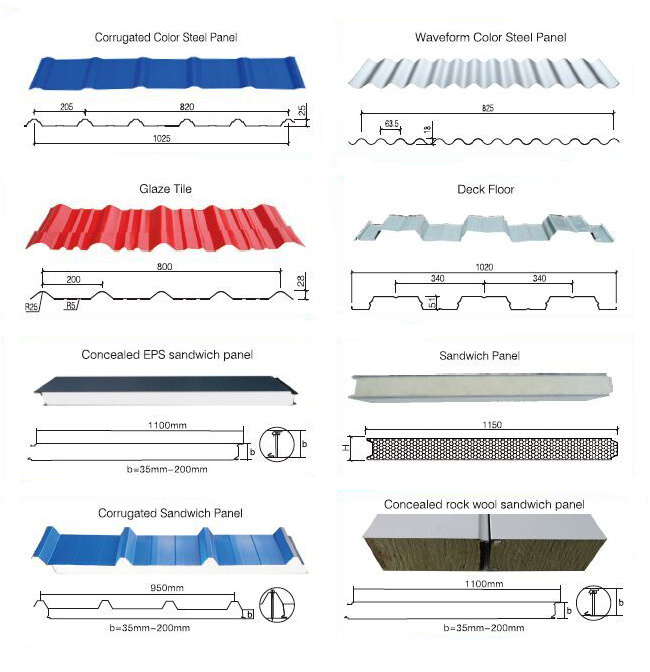

3, Roof and Wall Panel
Single colorfull corrugated steel sheet0.30~0.63mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc, insulation thickness around 50mm~100mm
Prefabricated Industrial Steel Structure Building as Workshop/Warehouse

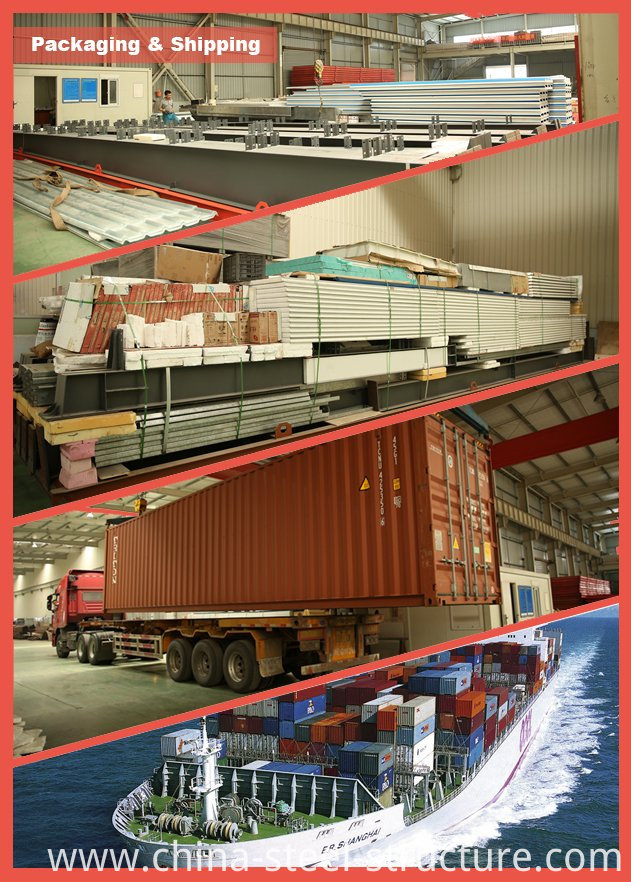

Part 3: Packing
Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ!
Prefabricated Industrial Steel Structure Building as Workshop/Warehouse

Part 4: Installation
PTH provides customers with one-stop integrated housing solution including installation and operation. We have 3 options for on-site installation according to the customer's specific situation. Firstly, we offer installation instructions and installation video. Secondly, we assign the installation team for the project. Finally, we send professional engineer to guide the local installation team.

Contact Details
Tel:86-571-83513988 / 18057525090
FAX:86-571-83513787
Office: Room 1601, Unit 3 of No. 1 Building, Dikai Plaza, # 471 Jincheng Road, Xiaoshan District, Hangzhou

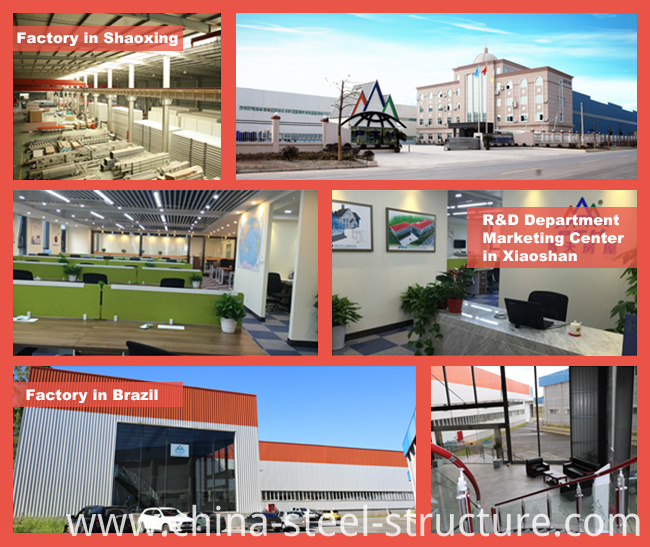

Factory:  Beiliu Road, Binhai Development Zone, Shaoxing City, China
Prefabricated Industrial Steel Structure Building as Workshop/Warehouse






Contact us if you need more details on Prefabricated Steel Warehouse. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Prefab Steel Building、Steel Structure Workshop. If these products fail to match your need, please contact us and we would like to provide relevant information.
