chinese supplier fast build mobile prefabricated 20ft flat pack container house for labor camp living

Product Description

Product Description

construction site work site fast build mobile prefabricated 20ft flat pack Container house for labor camp

The flat pack 20 feet construction site used fast build movable labor camp, container house that can be transported to long distances very easily, and assembled very far as it is facotry made and can be combined flexibily according to your different usage, such as labor camp accommodation, container office or meeting room, construction site shower room or toilet, kitchen and dining hall etc.

With our flat packed 6 x stacked containers, affordable quotations, punctual deliveries and experienced installers, we are able to meet the requirements and go beyond the imaginations of our customers.

The detail specification of the flat pack modular homes

Specifications
* Mild steel container frame painted
* 50mm glasswool panels with 0.4 mm color steel sheet
* White color Steel door with door frame
* Double glazed Aluminum windows with screen
* 15mm Mgo board floor with vinyl floor cover
* All Trimmings included as a kit form.
* Lights, light switch and plugs and external 3 point commercial plug etc


Optional extras installation excluded

* Wall , door and window
* Bath room units
* Kitchen unit 1m
* Kitchen unit 1.8m
* Basin and cupboard
* Toilet
* Common Window
* Bathroom window
* Electrical Plug point
* Light
* Light Switch
* Insulated doors 2m x 800mm or similar size
* Sliding door 2m x 1.8


Specification
1)  Option 1: 20ft: 6055*2435*2896mm
    Option 2: 20 ft : 5800*2200*2800 mm
2) Option 1 : 40ft: 12192*2435*2896mm
    Option 2 : 40ft: 11600*2200*2800 mm
3) Roof Type: Flat roof with organized internal water draining design
4) Storey: ≤3
Design parameter
1) Life span: up to 20years
2) Floor Live load: 2.0KN/m2
3) Roof Live load: 0.5KN/m2
4) Wind load: 0.6KN/m2
5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4
Wall panel
1) Thickness: 75mm fiber glass Sandwich panel, effective width: 1150mm
2) Exterior steel sheet (standard configuration): Corrugated 0.4mm       Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2
3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable
4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2
Roof system
1) Steel Frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel
2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection
3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable.
4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2.
5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers
Corner pillar
1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B.
2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation
Floor System
1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer's requirement.
2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability:grade A, nonflammable.
3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2.
4) Floor board: 18mm thickness fiber cement board, Fire-proof:grade B1. Density≥1.3g/cm3
5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color
Door & Window
1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm.
2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter's container), W1130*H1100mm(for 3 meter's container), Toilet window: W800*H500mm
Electric system
1) Rated power: 5.0 KW, suggestion external power source ≤3 in series.
2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A,  Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box.
3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W.
Painting
1) Primer painting: epoxy primer, Zinc color, thickness: 20 - 40 μm.
2) Finishing paint:  Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2)

Advantages of the flat pack modular container house

1.Perfect for modular/prefab site offices, cabins, warehouse, villa, toilet, shop, hotel, camp, office.
2.Efficient, low cost designs that can be customized for end user requirements.
3.Easy for low skilled workers to assemble.
4.The light steel frame structure is strong and reliable.
5.Many modular units can be stacked and linked together to create more space.
6.Neat inside: plumbing and wires are hidden into the sandwich panel.
7.Easy to transport by sea or by truck.

Load(kn/m2)
Base plate:3.0
Roof panel:1.5
Wind force:0.6
Sound insulation(db)
Base plate:30~35
Roof panel:30~35
Wind force:20~25
Heat transfer
Base plate:0.46
Roof panel:0.64
Wind force:0.47
More Details

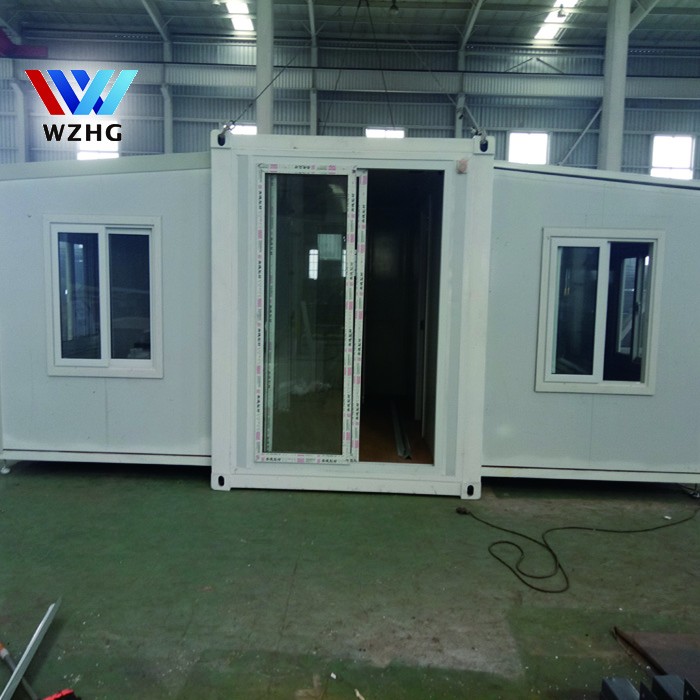

Inside of the house

Inside

Ceiling and light

Windows

Steel door

Corner

PVC floor

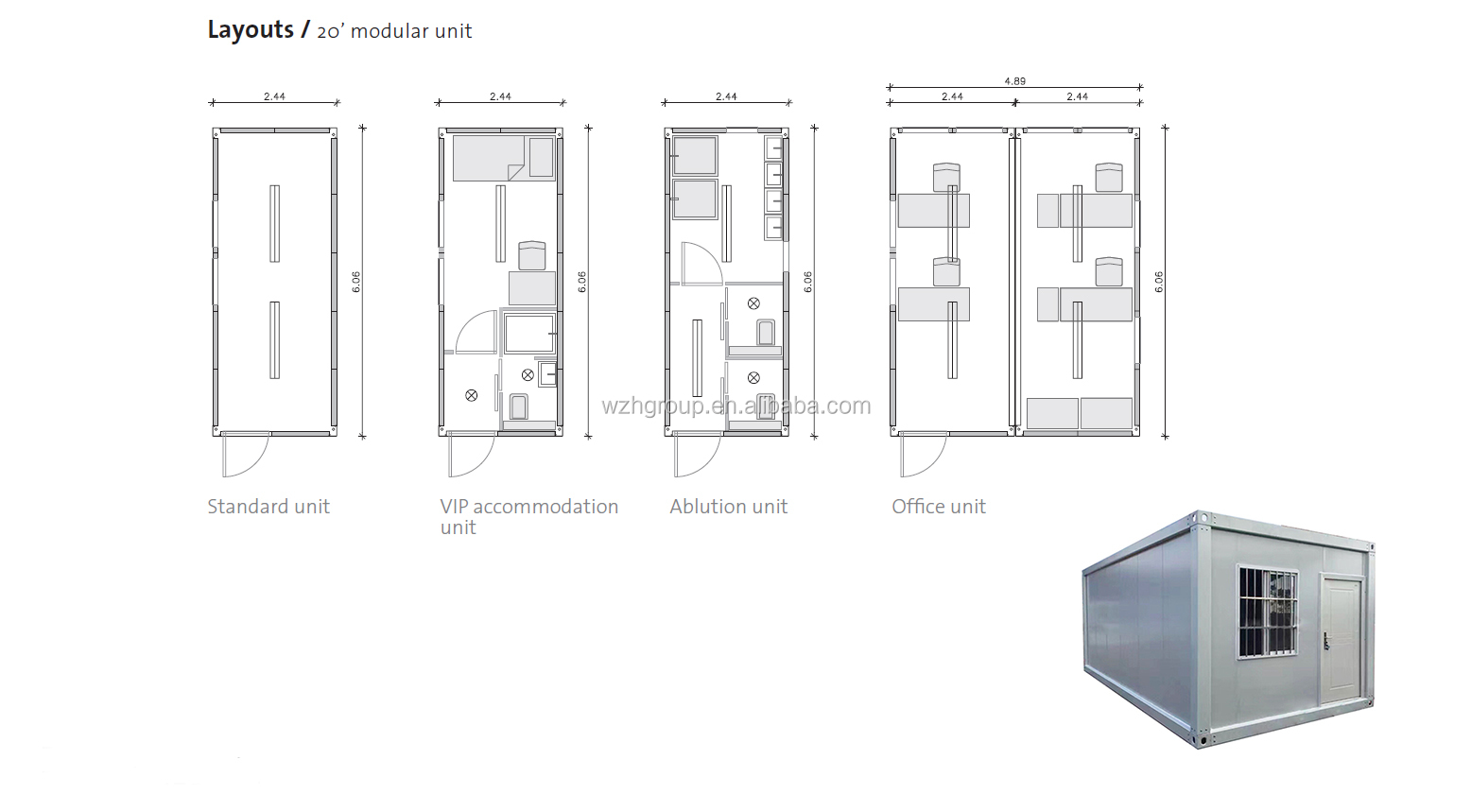

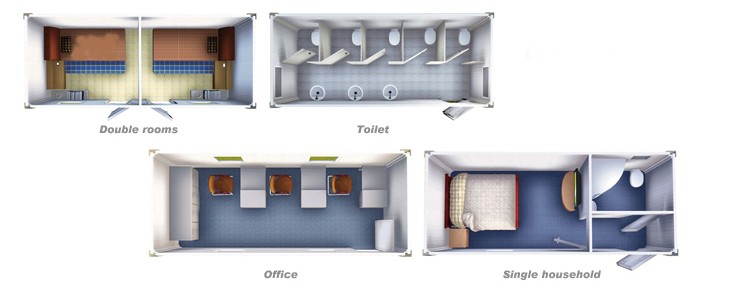

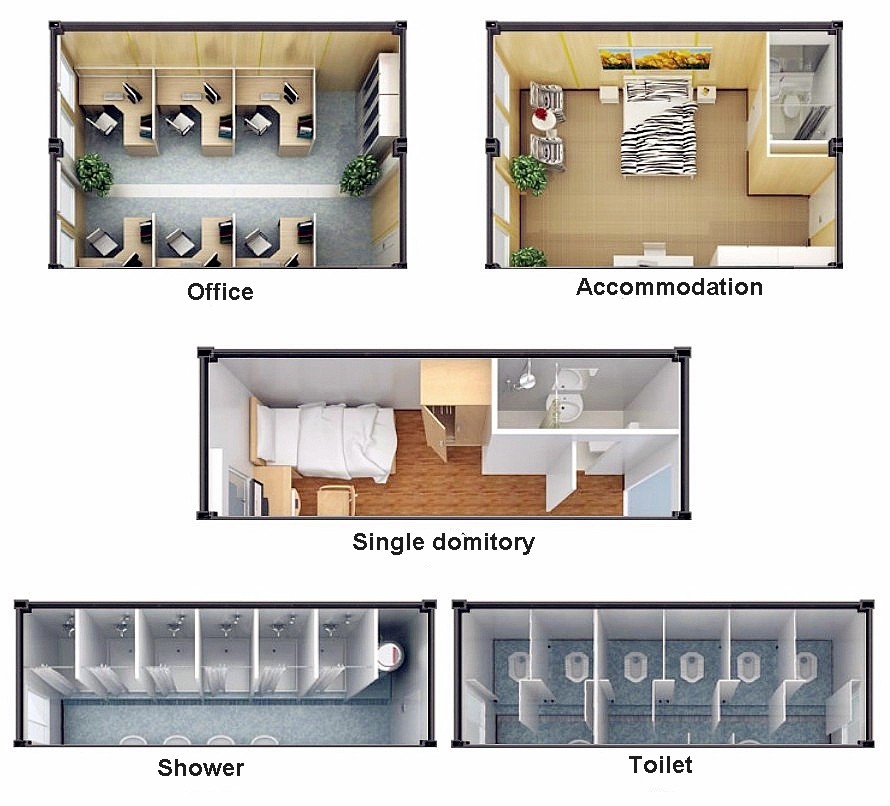

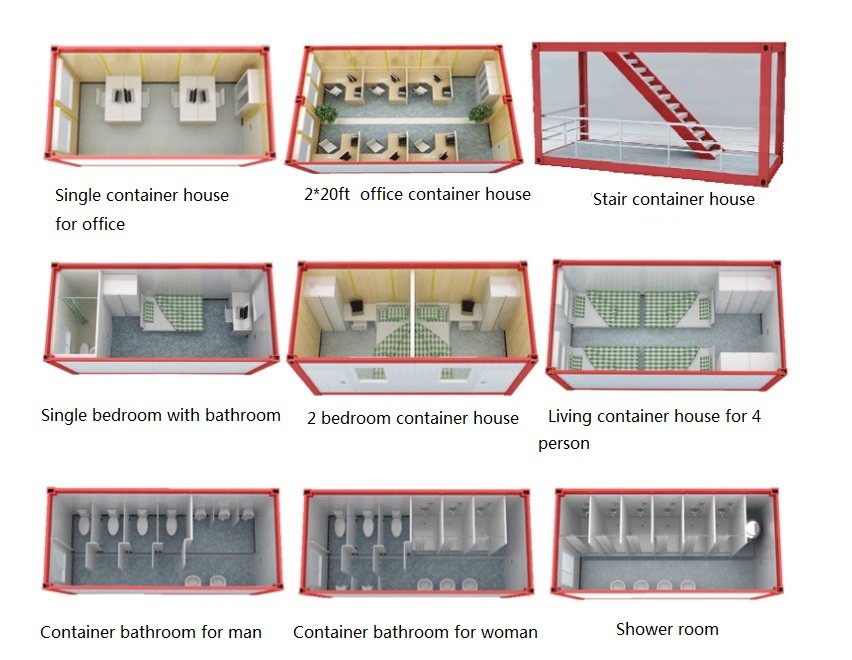

Different Layout
Assemble Process

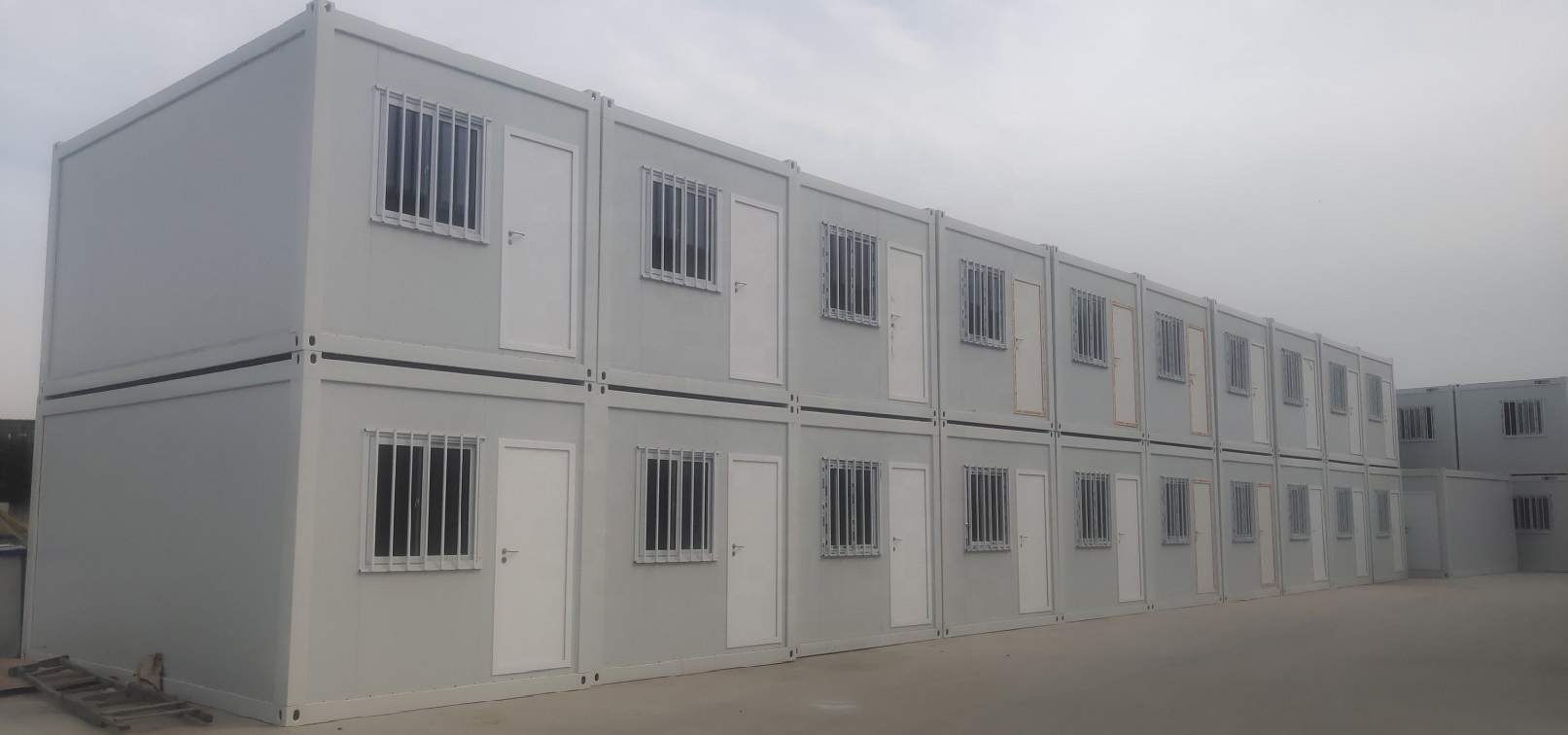

Application

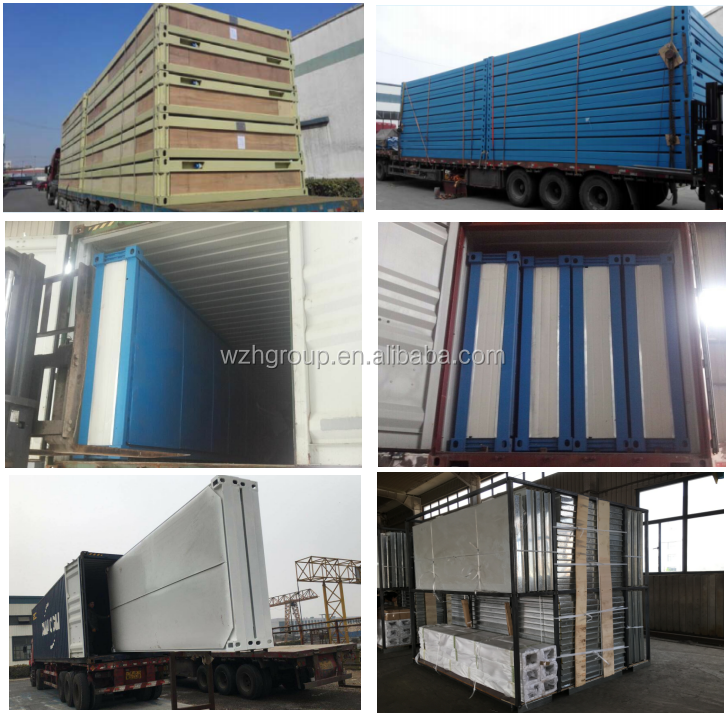

Loading
Our Company

Established in 2001, Weizhengheng Group covers an area of over 48,000 sqm, with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.

Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Hebei Weizhengheng Modular House Teck Co., Ltd., located in Shijiazhuang and specialized in steel frame villa and container houses design, product, sell and construction. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd, Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd, Shandong Office, Manzhouli Office and Uganda Office.

Our main product

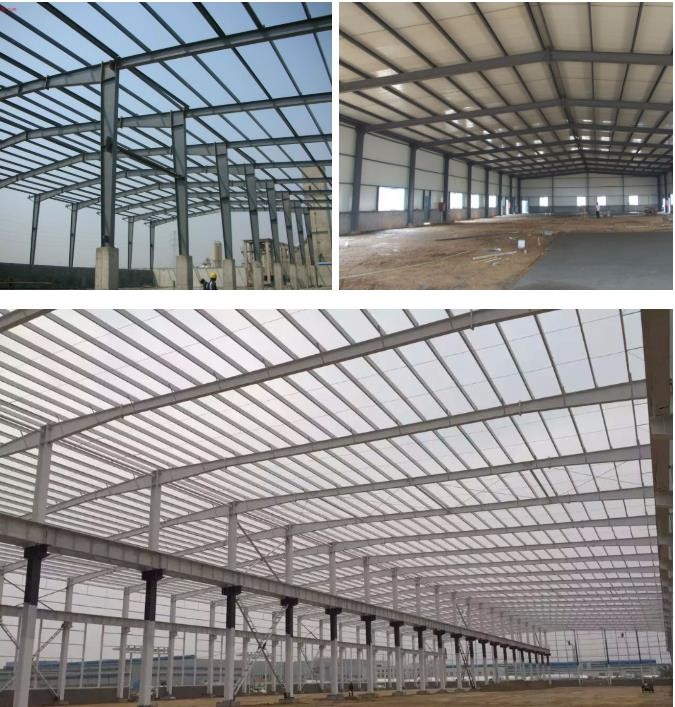

Light Steel Villa        Light gauge steel frame                  steel structure  buildings       Container house
